NS-5AC Ubiquiti airMAX NanoStation Radio
Description
Description
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management WiFi for easy UISP® mobile app support and fast setup.
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE). The NanoStation AC and NanoStation AC Loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC Loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC Loco make them extremely versatile and economical to deploy.
Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Features:
New antenna
Improved design
Management WiFi Radio/UISP mobile app
AirOS 8
Specifications24 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | With Mount: / 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") / Without Mount: / 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
| Weight | 233 g (8.2 oz) |
| Enclosure Materials | UV-resistant polycarbonate |

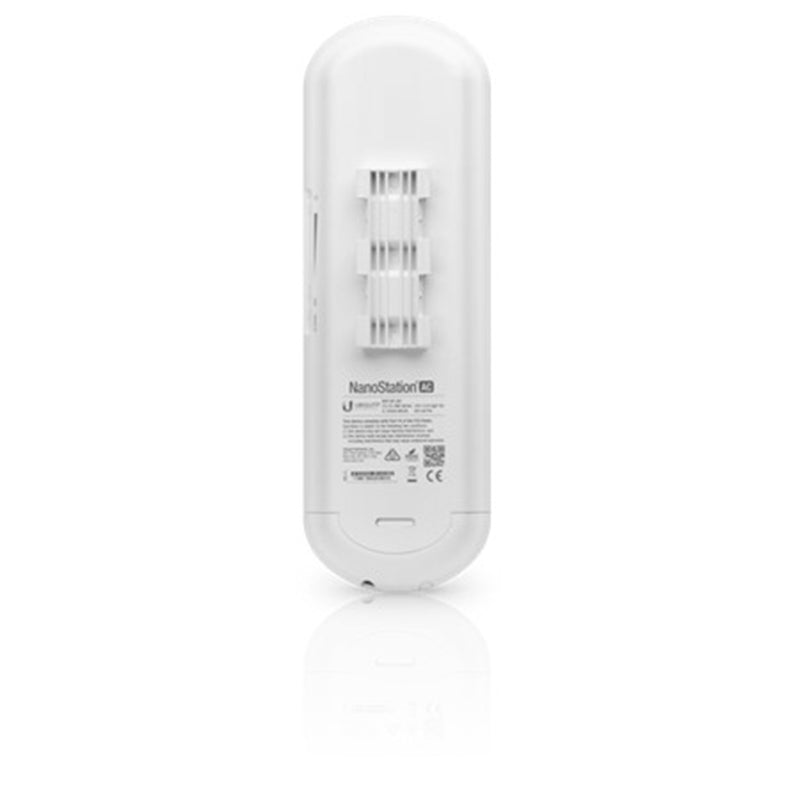

| Mounting | Pole and Wall Mount (Mounts Included) |
| Hardware | |

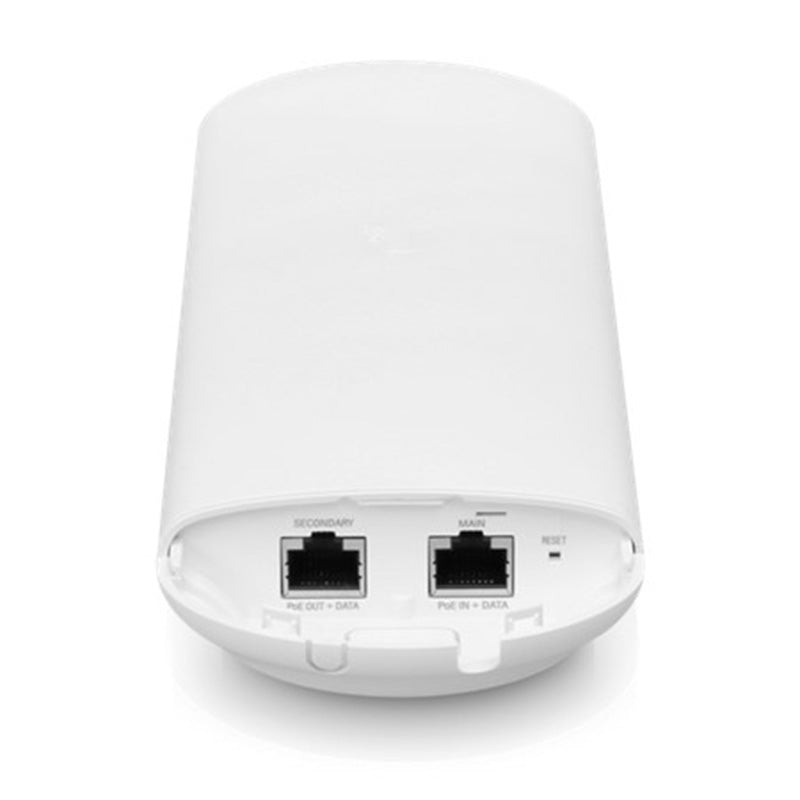

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) / PoE alternative A (pairs 1, 2+; 3, 6 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Max. Power Consumption | 9W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09603-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 16 dBi |
| Max. VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Antenna beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Cross-Pol Isolation | Min. 20 dB |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
