SKU: USW-FLEX-MINI

USW-Flex-Mini Ubiquiti UniFi Switch Flex Mini

$73.15 NZD

Product Options: Individual

Product variants

Add to cart, then request a quote for our best price.

Description

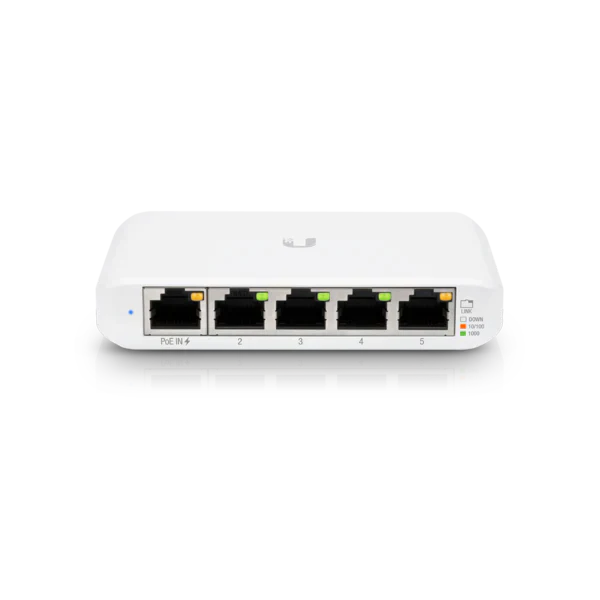

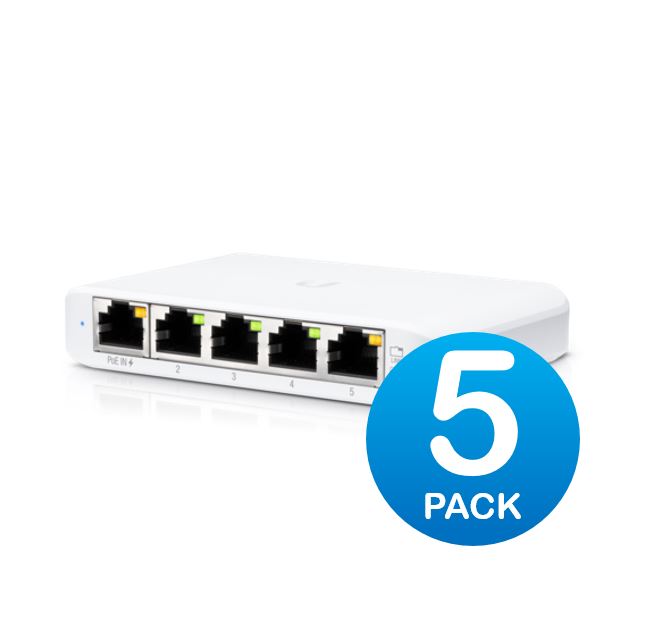

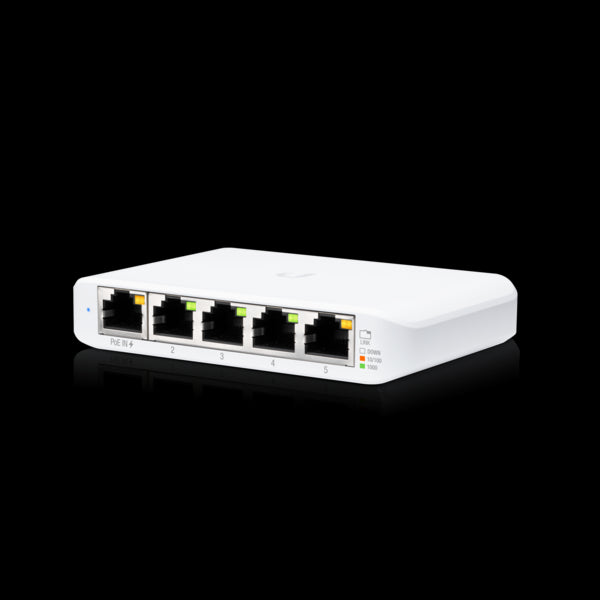

The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input.

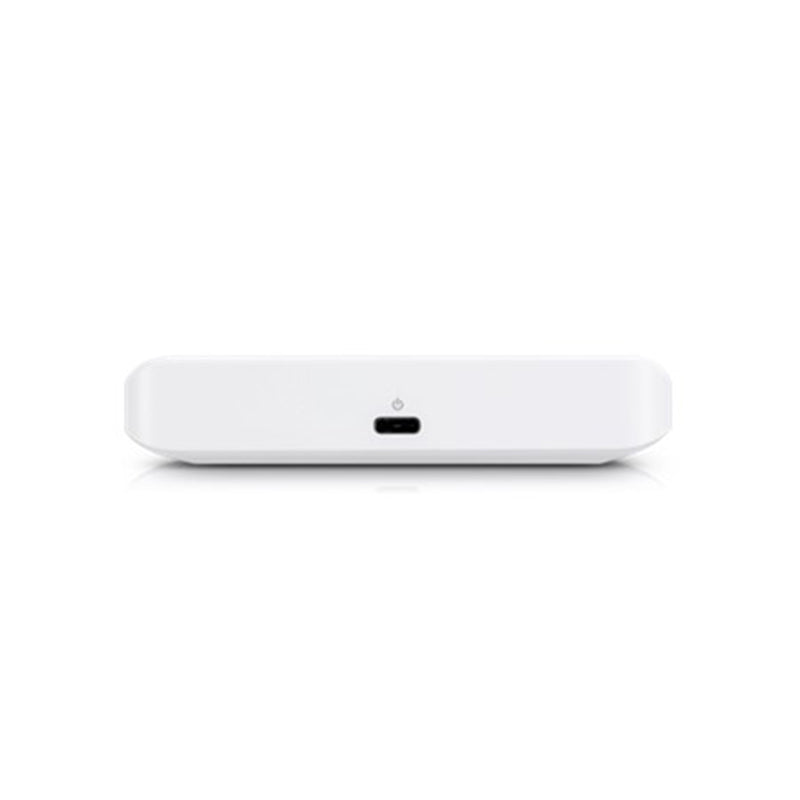

The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter.

This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

(1) GbE, 802.3af PoE RJ45 input
(4) GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 1A USB-C adapter (Only Comes In Single Pack)

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications23 specifications · 4 sections

Overview
Dimensions	107 x 70 x 21 mm / (4.2 x 2.8 x 0.8")
Port Layout · 1 GbE RJ45	5 / (1G/100M/10M)
Form Factor	Compact desktop
Performance
Switching Capacity	10 Gbps
Total Non-Blocking Throughput	5 Gbps
Forwarding Rate	7 Mpps
Supported VLANs	1,000
MAC Address Table Size	2,000
Hardware
Max. Power Consumption	2.5W
Power Method	(1) USB Type-C, 5V DC, 1A / (1) PoE
Power Input Method	USB Input / PoE
Power Supply	AC/DC, external, 5W
Supported Voltage Range	4.8—5.2V DC/USB / 44V—57V PoE
Management	Ethernet
Heat Dissipation	8.5 BTU/hr
Weight	150 g (5.3 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC, Anatel: 14501-20-08356
Software
Application Requirements · UniFi Network	Version 5.12.5 and later

Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model USW-FLEX-MINI · Ubiquiti's spec sheet
