UPL-Amp Ubiquiti UniFi PowerAmp
Description
Description
Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
UniFi PowerAmp is a meticulously crafted, insanely powerful amplifier designed to delight even the most discerning audiophiles. Management through the UniFi Play application and seamless integration with UniFi Pro A/V Switching offers a truly converged networking and premium audio experience.
UniFi PowerAmp operates independently with management through the UniFi Play mobile app. No UniFi Console is required.

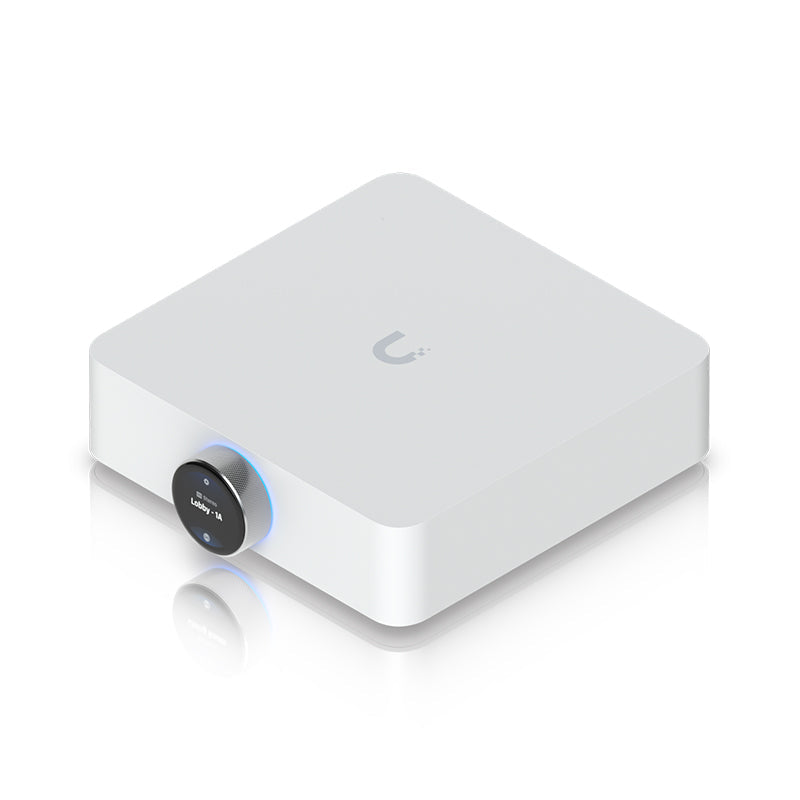

UniFi PowerAmp is designed to be flexibly placed on any flat surface. Additionally, with 2U of vertical space, a rack shelf can fit two UniFi PowerAmps side-by-side.

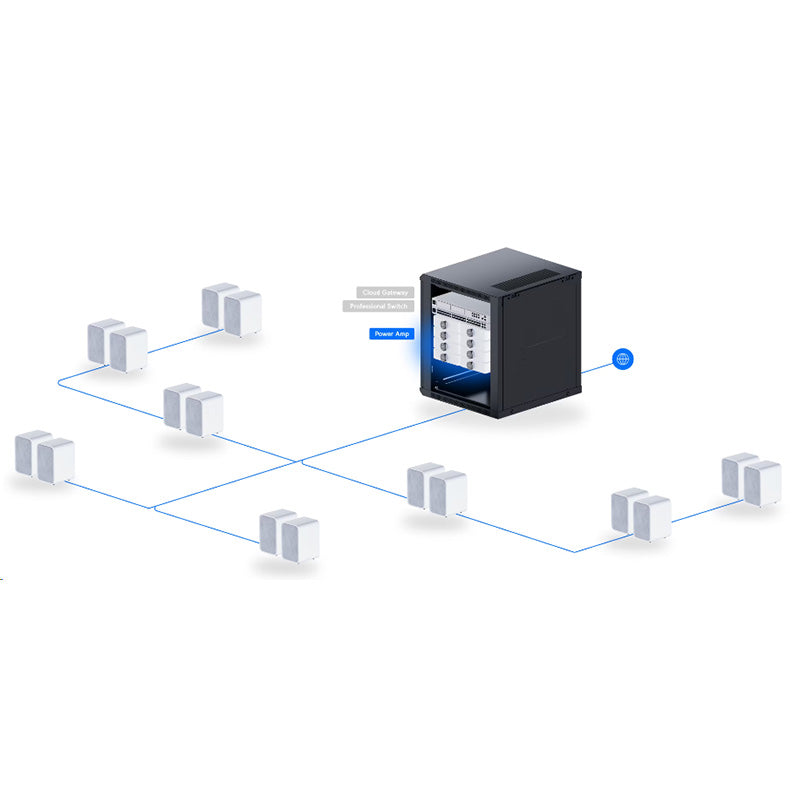

UniFi PowerAmp functions as an integrated amplifier without the need for a preamplifier and is designed with a plug-and-play experience. Control your audio effortlessly through the analogue inputs or network streaming with Apple AirPlay 2 and Spotify Connect. Need to expand audio coverage? No problem – simply add more UniFi PowerAmps and create groups for multi-zone audio control.
Up to 32 UniFi PowerAmps can be grouped for simultaneous control, with an unlimited number of groups available per audio space.
UniFi PowerAmp provides 130 W per channel at 8 ohms, or 260 W per channel at 4 ohms. By wiring passive speakers in parallel, UniFi PowerAmp can support two 8 ohm passive speakers wired in parallel to a single channel (4 ohm load).
Features:
Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
130 watts per channel at 8 ohms

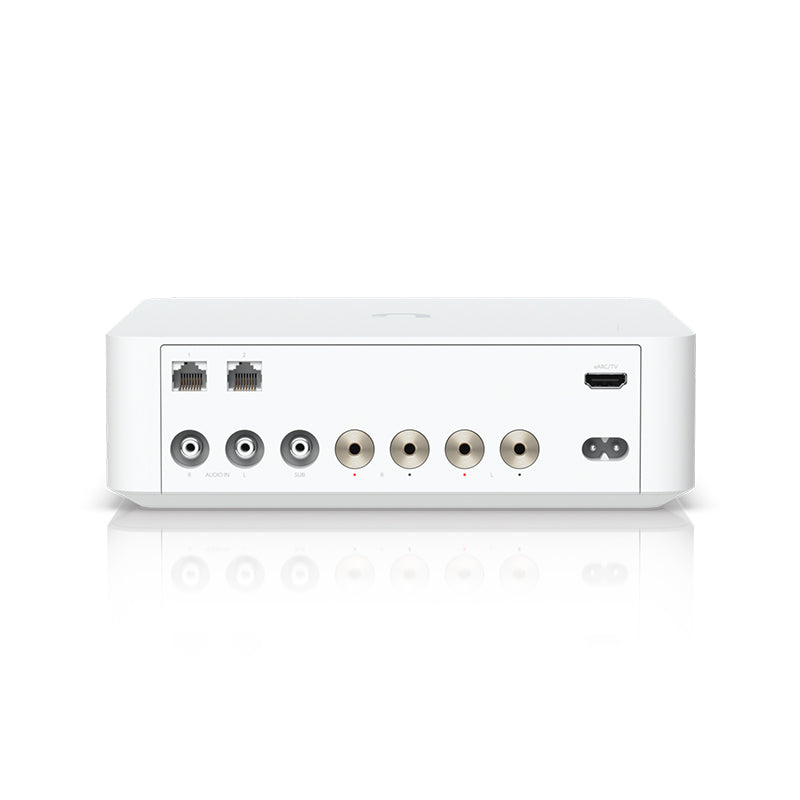

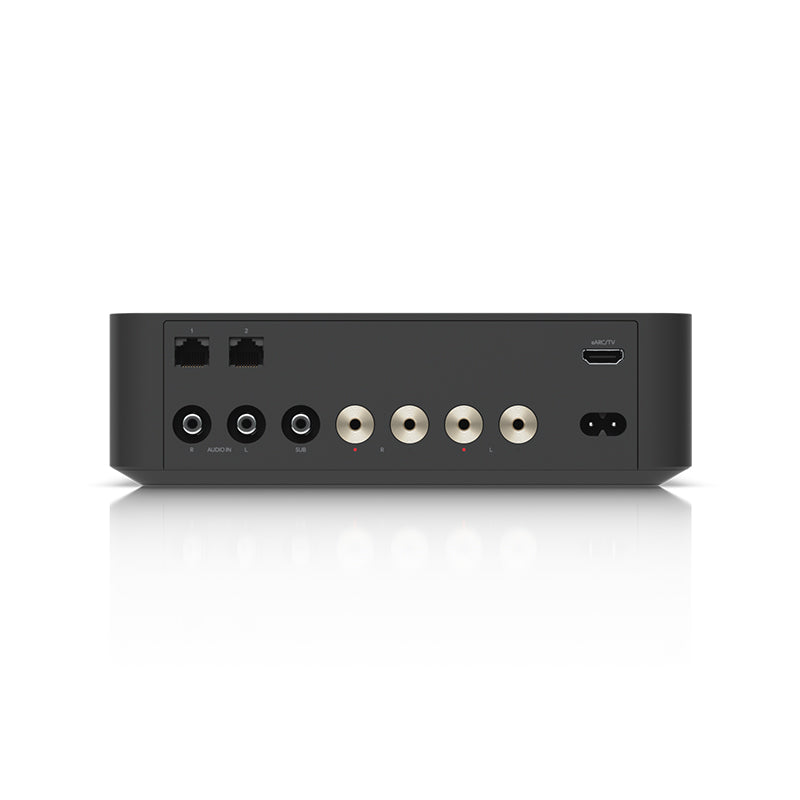

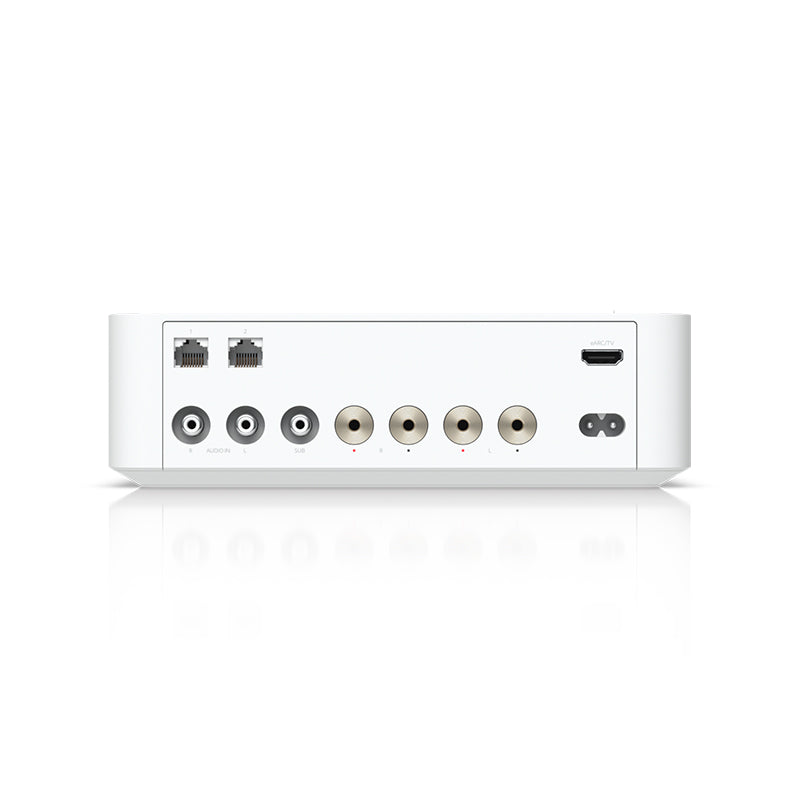

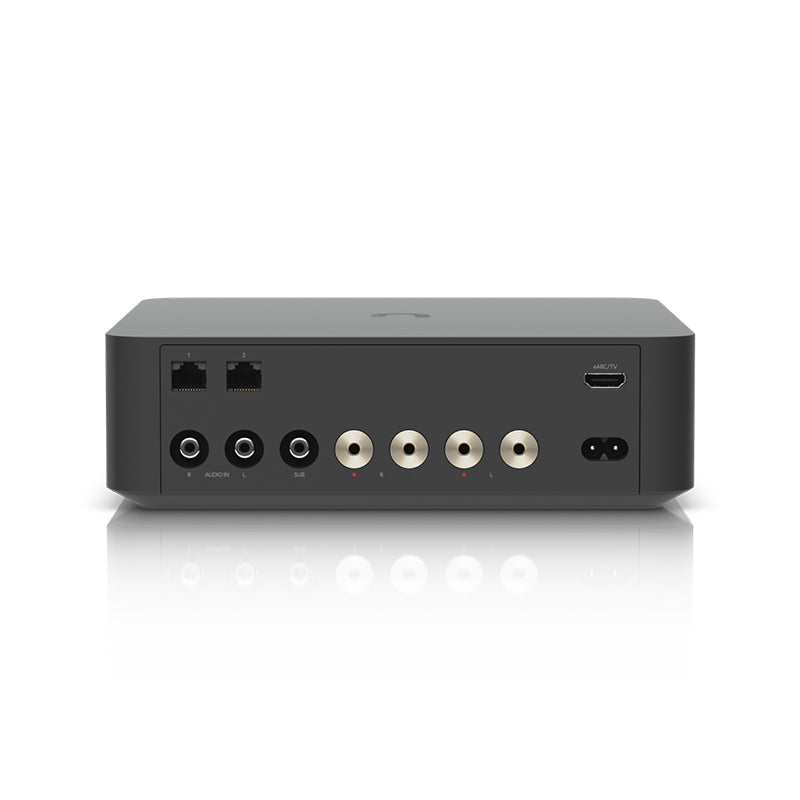

(2) speaker terminal outputs with (2) custom-designed banana plugs included
(1) RCA analogue subwoofer output
(2) RCA analogue inputs for left and right channels
(1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos

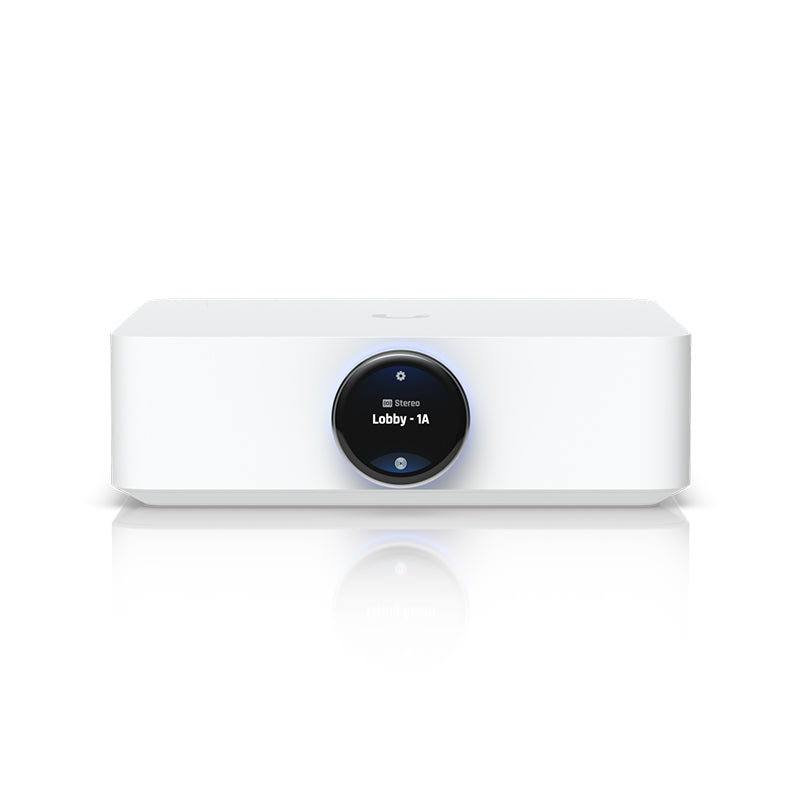

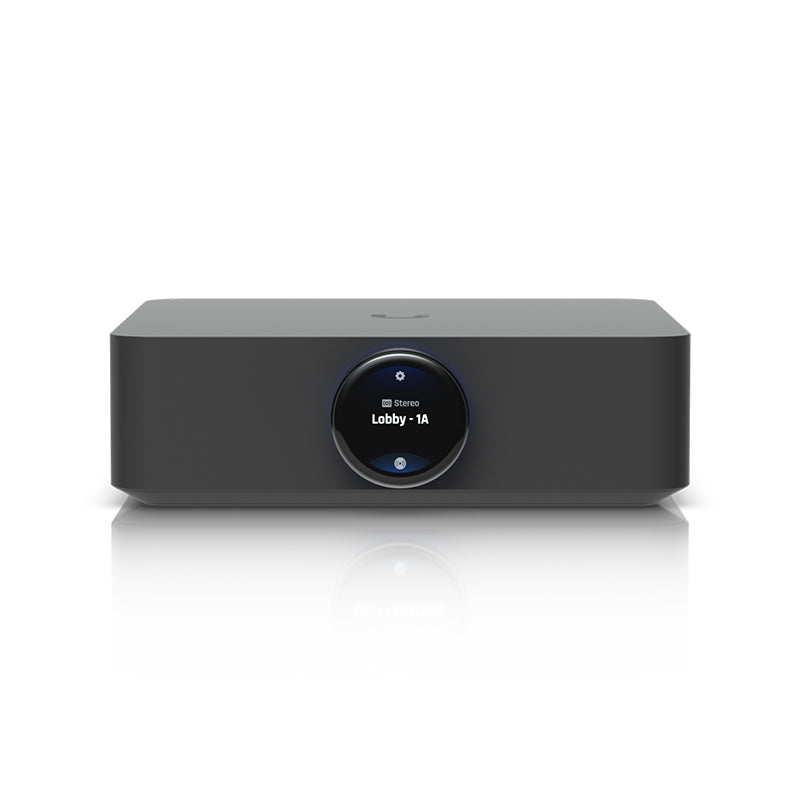

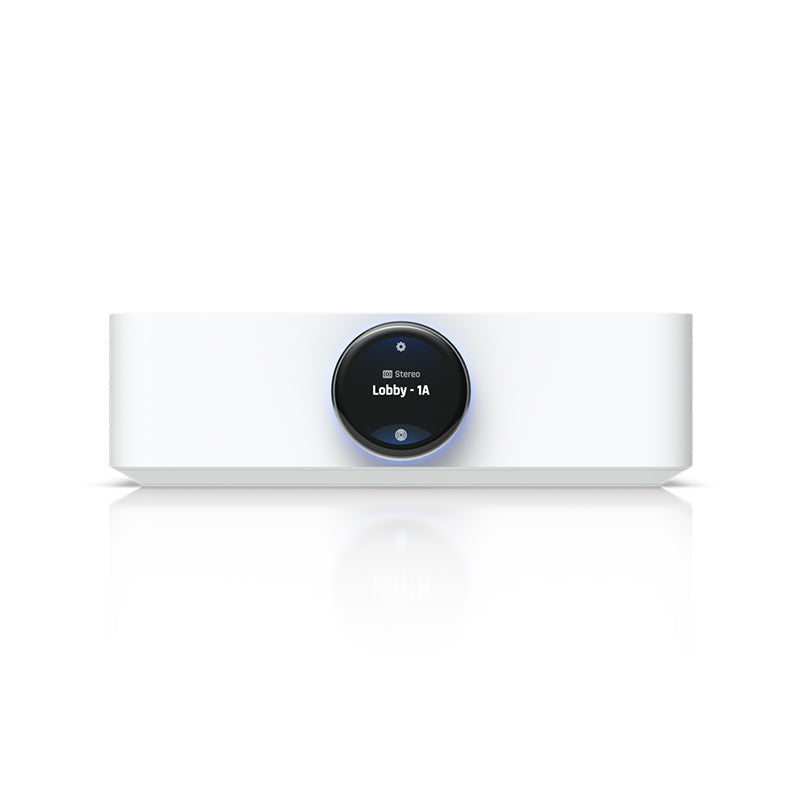

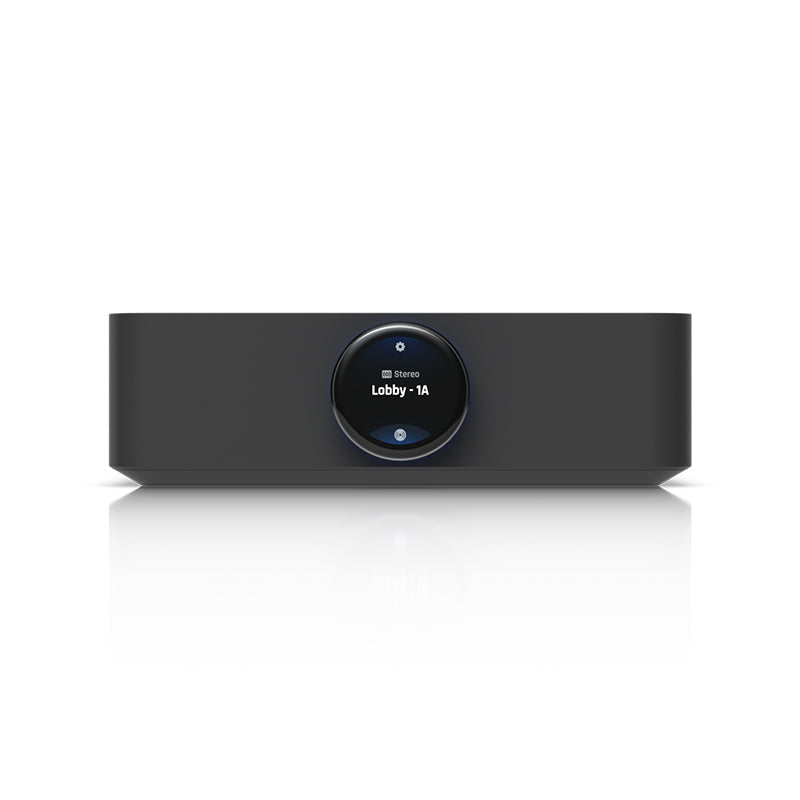

1.43" rotary knob with touchscreen
Effortless setup, management, and group control with the UniFi Play mobile app
Specifications24 specifications · 4 sections
| Mechanical | |
|---|---|

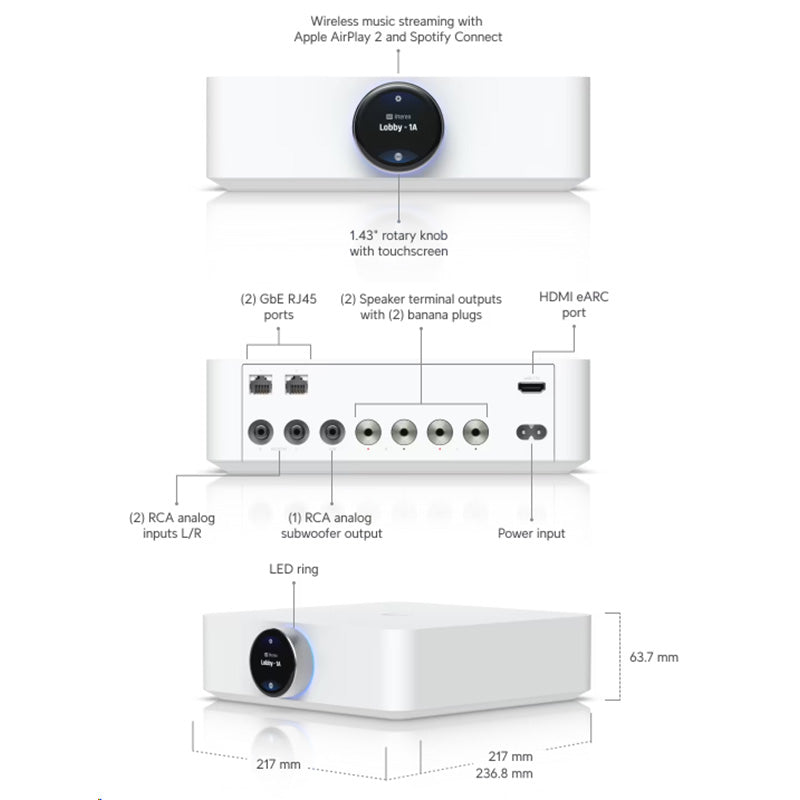

| Dimensions | With knob: / 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") / Without knob: / 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Chassis: Polycarbonate / Knob: Aluminum |
| Mounting | Compact Desktop |

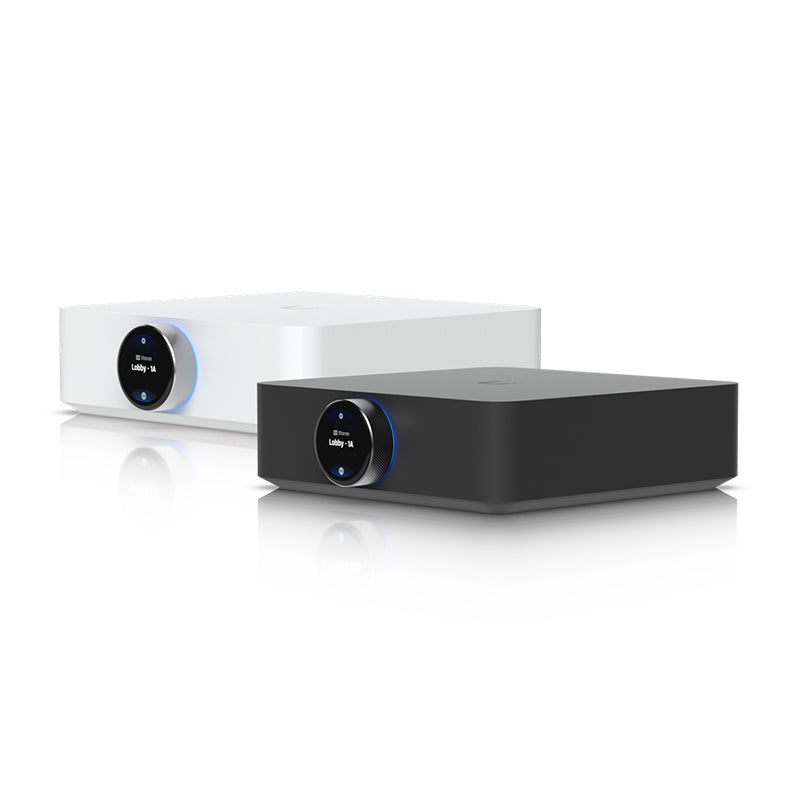

| Available Colors | Black / White |
| Audio | |
| Per Channel Power (Continuous power) | 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) / 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
| Amplifier Class | Class D |
| Output | Mono / Stereo sound |
| Surround Format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
| Zone | Up to 32 PowerAmps |
| Audio Input | (1) HDMI eARC input / (2) RCA analog inputs L/R |
| Audio Output | (1) RCA analog subwoofer output / (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay, Spotify Connect, Soundtrack Your Brand |
| Hardware | |
| Networking Interface | (2) GbE RJ45 ports |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 5G, BW 20/40/80 MHz / WiFi 2.4G, BW 20/40 MHz |
| Power Method | (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz |
| Max. Power Consumption | 17W |
| LCM Display | 1.43" rotary knob with touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | UniFi Play iOS™ and Android™: Version 1.0.0 and later |
