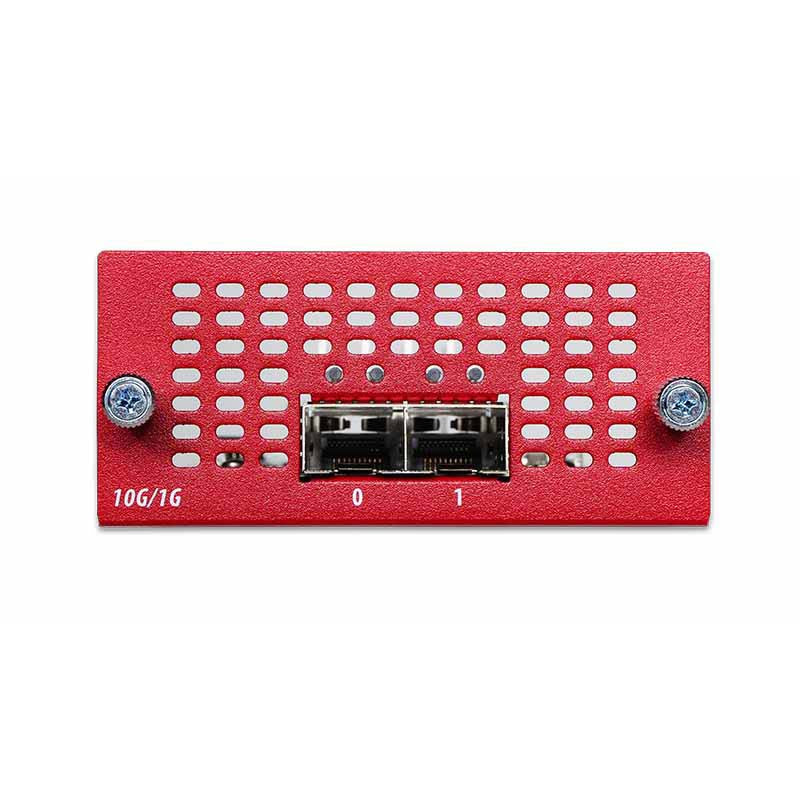

WatchGuard Firebox M 3rd Gen 2 x 10Gb SFP+ Fiber Module
The two SFP+ ports are numbered 0 - 1. To use these interfaces, you must plug in a compatible SFP+ transceiver.
Each SFP+ port has two indicators. The right indicator shows link status, the left indicator shows activity.
| Indicator | Indicator Color | Interface Status |
|---|---|---|
| Connection (right) | Yellow | Link at 10 Gbps |
| Green | Link at 1 Gbps | |
| Not Lit | No link | |
|
Activity (left) |
Yellow, blinks | Power on, network activity |
| Not Lit | Power off, no connections |
